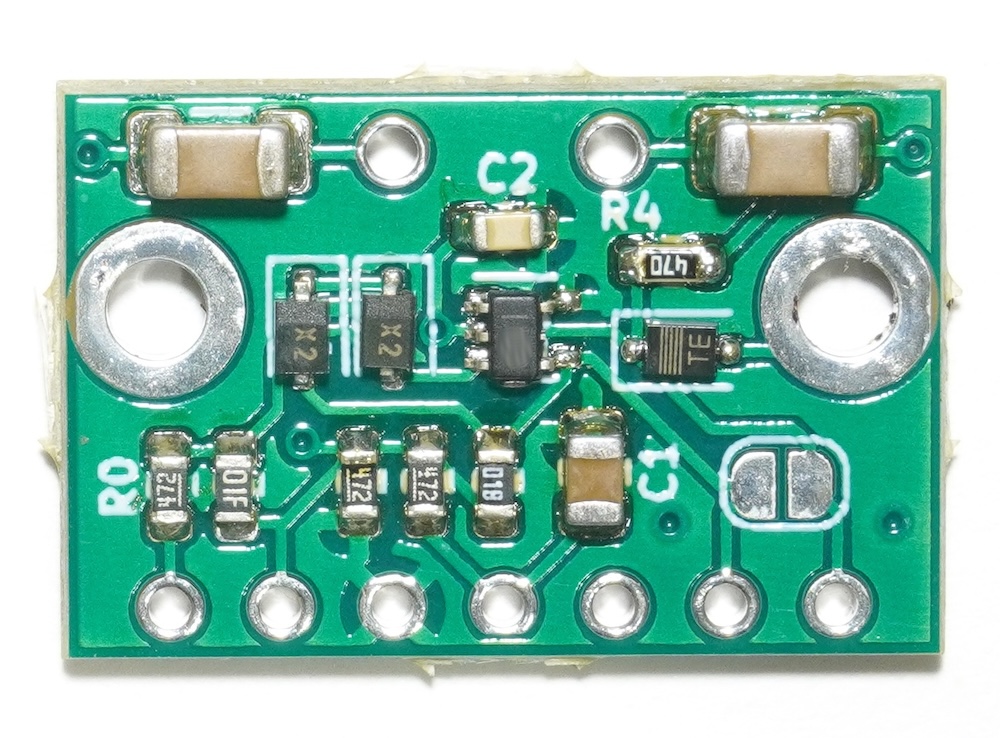

If you are thinking of soldering a piezo disc directly to a guitar cable, stop and get some help. This is the help. It is a high fidelity piezo disc preamp on a circuit board. Put it between the disc and cable and you will get much better sound.
The core amplifier part of the circuit is the same as is in
Metal Marshmallow Pro, except this board is externally powered. It has super-low noise even at high gain. It has a proper high-impedance input buffer so that it has good bass response and you won't get that awful sound associated with pizeo discs soldered directly to guitar cables.
Watch on Youtube

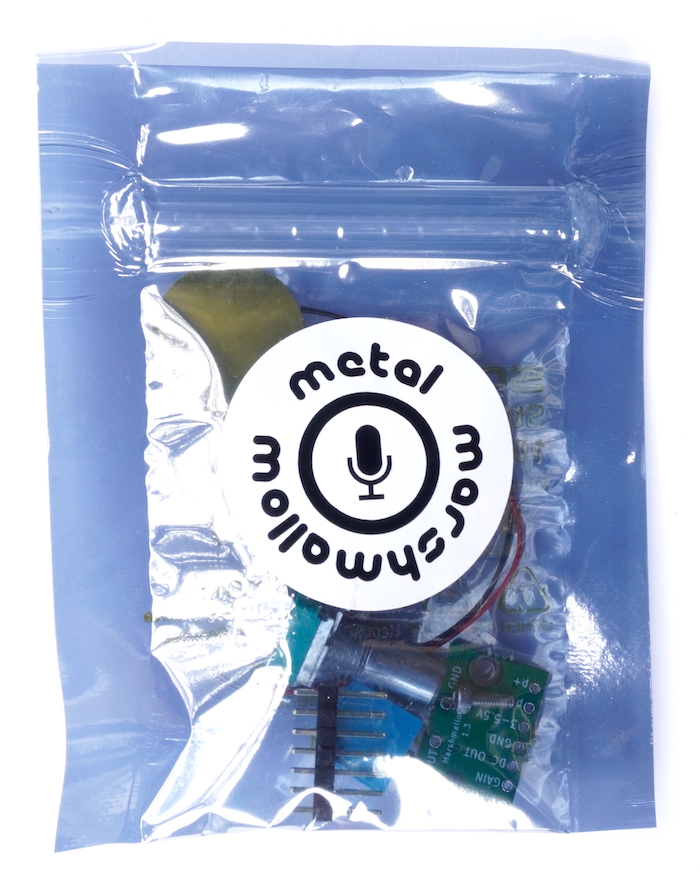

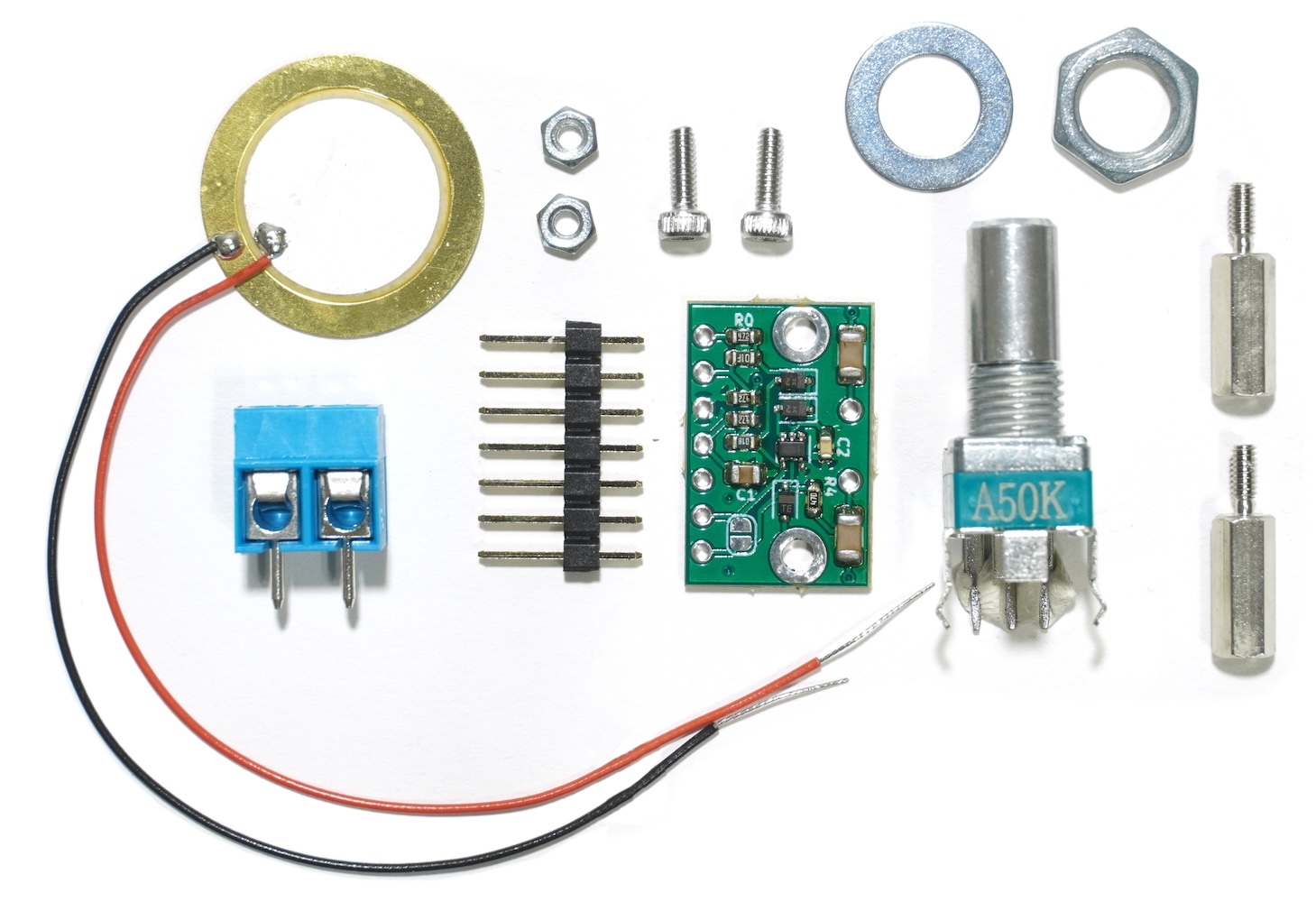

Included
- Marshmallow DIY Piezo Preamp
- 7-Pin Header
- 20mm Brass Piezo Disc
- 9mm A50k Log Pot
- Nut and Washer for Pot
- Terminal Block (to attach audio cable)
- 10mm standoffs (to facilitate a grounded enclosure)
- Screws and nuts for standoffs

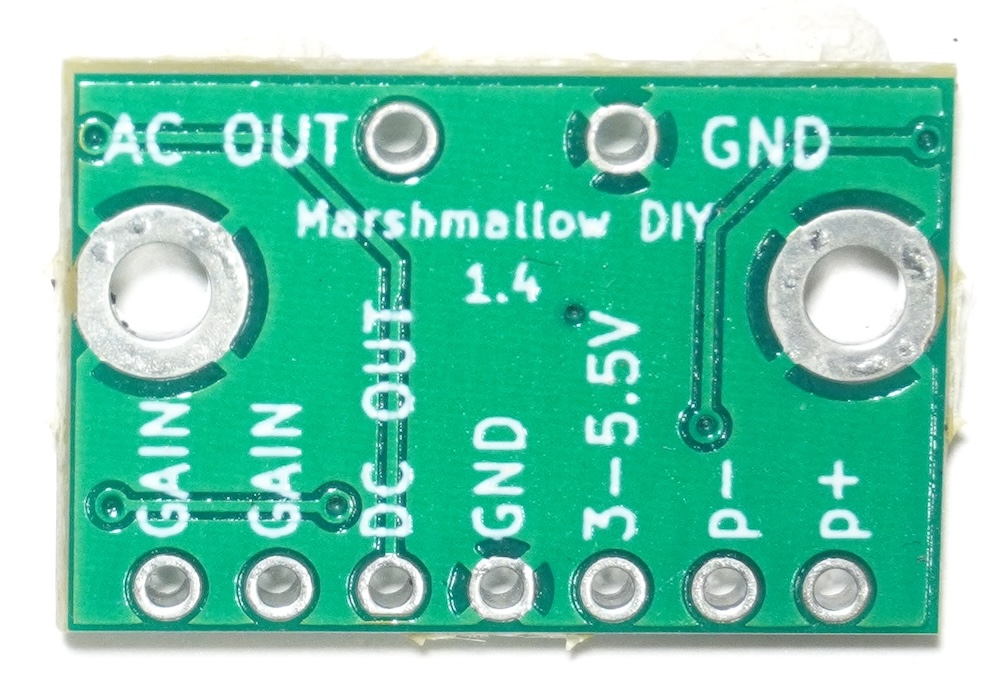

If you only want the board and headers but not the accessories, check out
Marshmallow DIY. More info about the board is there.
This board is not Phantom-Powered. There is a
Phantom Powered version here.
